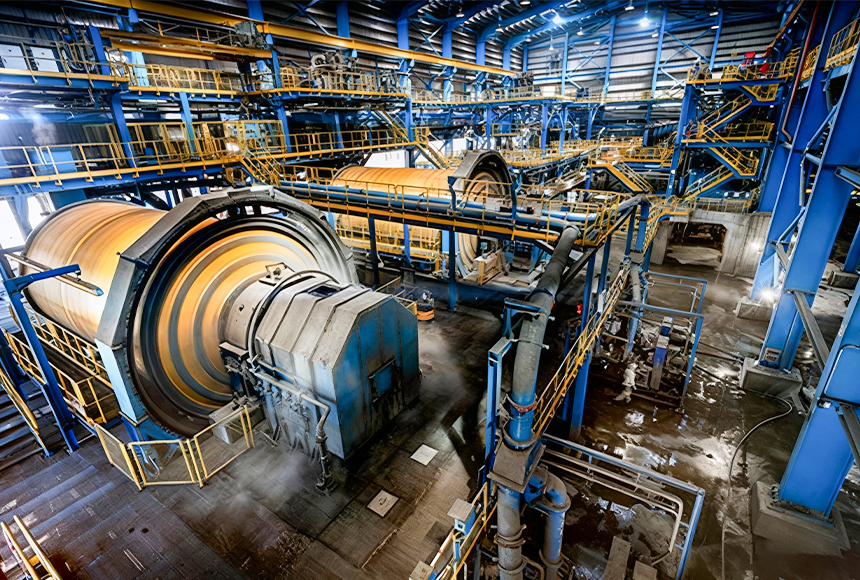

Ball mill is the key milling equipment after material has been crushed. It is widely used in cement, silicate, new construction material, refractory material, chemical fertilizer, ferrous metal and non-ferrous metal as well as ceramics. It is widely applied to dry or wet grinding for ores and rocks.
1500–5500mmDiameter
High-quality products are our core competitiveness
1. Multi-cartridge design of cylinder, high crushing ratio, not easy to block, saving time and costs.
2. Added with special wear-resistant materials, the liner is strong, wear-resistant, and easy to replace.

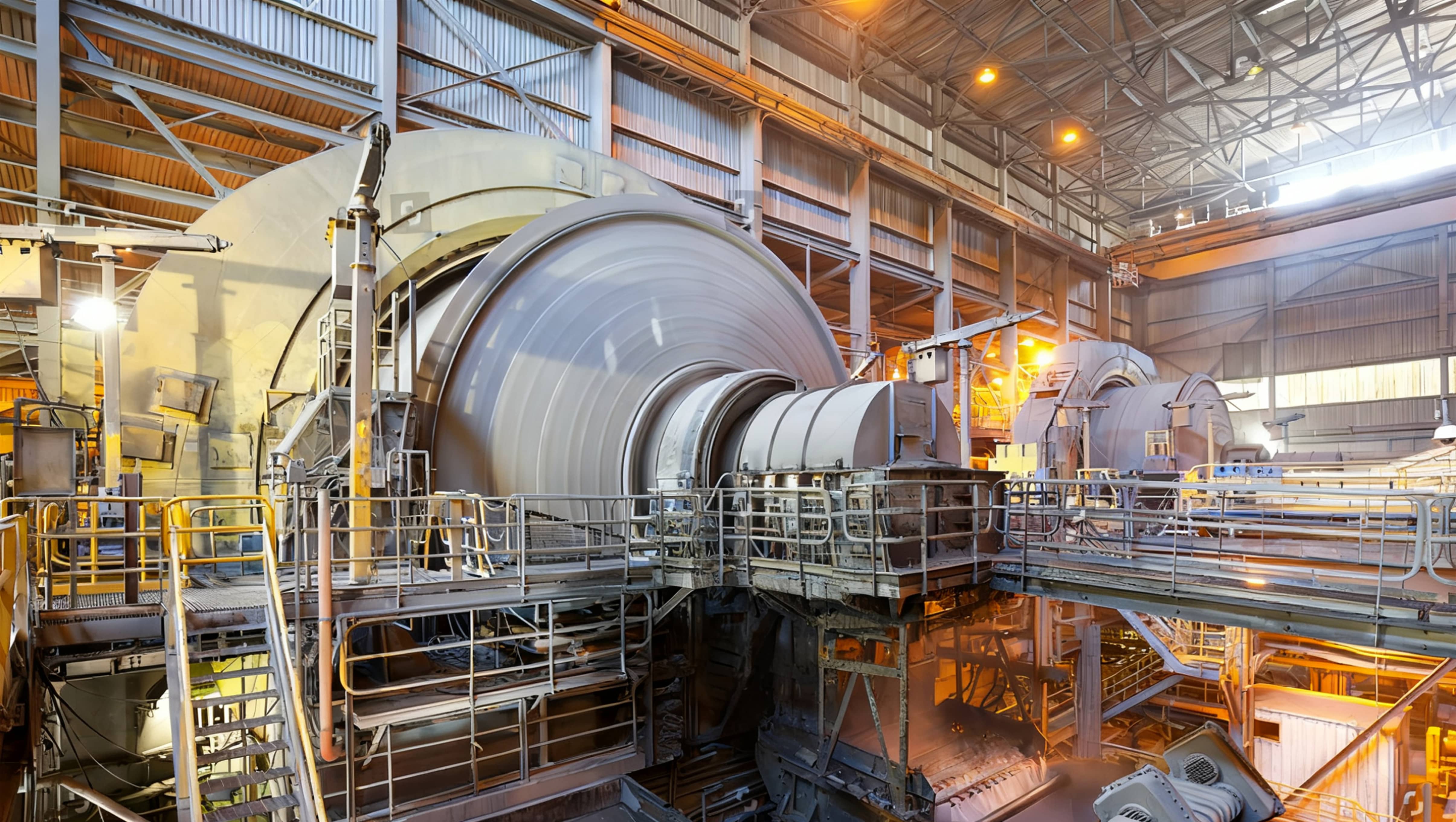

Ball mill is horizontal cylindrical rotation device, driving by brim gearwheel. The shell rotates which generates eccentricity, this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material.
to view more
Overflow Ball Mill
Wet Grid Ball Mill
Dry Grid Ball Mill
Self Grinding Machine
Ceramic Ball Mill
| Model | Cylinder | Effective Volume (m³) |
Max.Ball Loading (t) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | |||||
| MQY-1530 | 1500 | 3000.0 | 4.5 | 8 | 30 | 90 |
| MQY-1545 | 1500 | 4500.0 | 6.7 | 12 | 30 | 132 |
| MQY-1830 | 1830 | 3000.0 | 6.7 | 12 | 26.6 | 130 |
| MQY-1845 | 1830 | 4500.0 | 10.5 | 19 | 26.8 | 180 |
| MQY-2130 | 2100 | 3000.0 | 9.2 | 16 | 23.8 | 210 |
| MQY-2136 | 2100 | 3600.0 | 11 | 20 | 23.8 | 210 |
| MQY-2145 | 2100 | 4500.0 | 13.8 | 25 | 23.8 | 280 |
| MQY-2230 | 2200 | 3000.0 | 10 | 18.5 | 21.3 | 210 |
| MQY-2245 | 2200 | 4500.0 | 15.2 | 28 | 21.3 | 280 |
| MQY-2430 | 2400 | 3000.0 | 12 | 22 | 21.3 | 245 |
| MQY-2436 | 2400 | 3600.0 | 14 | 26 | 21.3 | 280 |
| MQY-2445 | 2400 | 4500.0 | 17.8 | 30 | 21.6 | 320 |
| MQY-2460 | 2400 | 6000.0 | 24 | 44 | 21.7 | 480 |
| MQY-2736 | 2700 | 3600.0 | 18 | 33 | 20.7 | 400 |
| MQY-2740 | 2700 | 4000.0 | 20.6 | 38 | 20.7 | 400 |
| MQY-2745 | 2700 | 4500.0 | 23.2 | 43 | 20.7 | 480 |
| MQY-2750 | 2700 | 5000.0 | 25.8 | 48 | 20.6 | 500 |
| MQY-2760 | 2700 | 6000.0 | 31 | 57 | 20.6 | 630 |
| MQY-3040 | 3000 | 4000.0 | 25.7 | 47 | 19 | 500 |
| MQY-3064 | 3000 | 6400.0 | 40.2 | 74 | 19 | 800 |
| MQY-3245 | 3200 | 4500.0 | 32 | 59 | 18.2 | 630 |
| MQY-3254 | 3200 | 5400.0 | 38 | 73 | 18.2 | 800 |
| MQY-3270 | 3200 | 7000.0 | 50.6 | 93 | 18.2 | 1250 |
| MQY-3645 | 3600 | 4500.0 | 40.8 | 75 | 18 | 1000 |
| MQY-3650 | 3600 | 5000.0 | 46 | 86 | 18 | 1250 |
| MQY-3660 | 3600 | 6000.0 | 54 | 102 | 18 | 1250 |
| MQY-3685 | 3600 | 8500.0 | 79 | 131 | 18 | 1800 |
| MQY-4060 | 4000 | 6000.0 | 70 | 126 | 16.9 | 1500 |
| MQY-4067 | 4000 | 6700.0 | 78 | 136 | 16.9 | 1600 |
| MQY-4361 | 4270 | 6100.0 | 80 | 144 | 15.7 | 1850 |
| MQY-4564 | 4500 | 6400.0 | 95 | 172 | 15.6 | 2000 |
| MQY-5064 | 5030 | 6400.0 | 120 | 216 | 14.4 | 2600 |
| MQY-5083 | 5030 | 8300.0 | 152 | 266 | 14.4 | 3300 |
| MQY-5585 | 5500 | 8500.0 | 187 | 338 | 13.8 | 4500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Max.Ball Loading (t) |
Main Motor (KW) |
| MQY-1530 | 4.5 | 8 | 90 |
| MQY-1545 | 6.7 | 12 | 132 |
| MQY-1830 | 6.7 | 12 | 130 |
| MQY-1845 | 10.5 | 19 | 180 |
| MQY-2130 | 9.2 | 16 | 210 |
| MQY-2136 | 11 | 20 | 210 |
| MQY-2145 | 13.8 | 25 | 280 |
| MQY-2230 | 10 | 18.5 | 210 |
| MQY-2245 | 15.2 | 28 | 280 |
| MQY-2430 | 12 | 22 | 245 |
| MQY-2436 | 14 | 26 | 280 |
| MQY-2445 | 17.8 | 30 | 320 |
| MQY-2460 | 24 | 44 | 480 |
| MQY-2736 | 18 | 33 | 400 |
| MQY-2740 | 20.6 | 38 | 400 |
| MQY-2745 | 23.2 | 43 | 480 |
| MQY-2750 | 25.8 | 48 | 500 |
| MQY-2760 | 31 | 57 | 630 |
| MQY-3040 | 25.7 | 47 | 500 |
| MQY-3064 | 40.2 | 74 | 800 |
| MQY-3245 | 32 | 59 | 630 |
| MQY-3254 | 38 | 73 | 800 |
| MQY-3270 | 50.6 | 93 | 1250 |
| MQY-3645 | 40.8 | 75 | 1000 |
| MQY-3650 | 46 | 86 | 1250 |
| MQY-3660 | 54 | 102 | 1250 |
| MQY-3685 | 79 | 131 | 1800 |
| MQY-4060 | 70 | 126 | 1500 |
| MQY-4067 | 78 | 136 | 1600 |
| MQY-4361 | 80 | 144 | 1850 |
| MQY-4564 | 95 | 172 | 2000 |
| MQY-5064 | 120 | 216 | 2600 |
| MQY-5083 | 152 | 266 | 3300 |
| MQY-5585 | 187 | 338 | 4500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cylinder | Effective Volume (m³) |
Max.Ball Loading (t) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | |||||
| MQS-1530 | 1500 | 3000 | 4.5 | 9 | 30 | 110 |
| MQS-1545 | 1500 | 4500 | 6.7 | 14 | 29.6 | 155 |
| MQS-1830 | 1830 | 3000 | 6.7 | 14 | 26.6 | 155 |
| MQS-1845 | 1830 | 4500 | 10.5 | 20 | 26.8 | 210 |
| MQS-2130 | 2100 | 3000 | 8.8 | 18 | 23.8 | 210 |
| MQS-2136 | 2100 | 3600 | 11 | 22.5 | 23.8 | 245 |
| MQS-2145 | 2100 | 4500 | 13.8 | 28 | 23.8 | 280 |
| MQS-2230 | 2200 | 3000 | 10 | 20 | 21.3 | 210 |
| MQS-2245 | 2200 | 4500 | 15.2 | 30.5 | 21.4 | 320 |
| MQS-2430 | 2400 | 3000 | 12 | 25 | 21.3 | 280 |
| MQS-2436 | 2400 | 3600 | 14 | 29 | 21.4 | 320 |
| MQS-2445 | 2400 | 4500 | 17.8 | 37 | 21.4 | 380 |
| MQS-2470 | 2400 | 7000 | 28 | 58 | 21.5 | 480 |
| MQS-2736 | 2700 | 3600 | 18 | 38 | 20.7 | 400 |
| MQS-2740 | 2700 | 4000 | 20.6 | 43 | 20.7 | 450 |
| MQS-2745 | 2700 | 4500 | 23.2 | 48 | 20.7 | 480 |
| MQS-2750 | 2700 | 5000 | 25.8 | 54 | 20.6 | 560~630 |
| MQS-2760 | 2700 | 6000 | 31 | 65 | 20.6 | 630~710 |
| MQS-3040 | 3000 | 4000 | 25.7 | 54 | 19 | 560~630 |
| MQS-3064 | 3000 | 6400 | 40.2 | 84 | 19 | 1000 |
| MQS-3230 | 3200 | 3000 | 21.8 | 46 | 18.2 | 500 |
| MQS-3236 | 3200 | 3600 | 26.2 | 56 | 18.2 | 630 |
| MQS-3245 | 3200 | 4500 | 32 | 65 | 18.2 | 800 |
| MQS-3254 | 3200 | 5400 | 38 | 80 | 18.2 | 1000 |
| MQS-3640 | 3600 | 4000 | 36 | 75 | 18 | 1000 |
| MQS-3645 | 3600 | 4500 | 40.8 | 88 | 18 | 1250 |
| MQS-3650 | 3600 | 5000 | 46 | 96 | 18 | 1400 |
| MQS-3660 | 3600 | 6000 | 54 | 117 | 18 | 1400~1600 |
| MQS-4050 | 4000 | 5000 | 58 | 121 | 16.9 | 1500 |
| MQS-4060 | 4000 | 6000 | 70 | 146 | 16.9 | 1800 |
| MQS-4560 | 4500 | 6000 | 87 | 182 | 15.6 | 2300 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Max.Ball Loading (t) |
Speed (r/min) |
| MQS-1530 | 4.5 | 9 | 30 |
| MQS-1545 | 6.7 | 14 | 29.6 |
| MQS-1830 | 6.7 | 14 | 26.6 |
| MQS-1845 | 10.5 | 20 | 26.8 |
| MQS-2130 | 8.8 | 18 | 23.8 |
| MQS-2136 | 11 | 22.5 | 23.8 |
| MQS-2145 | 13.8 | 28 | 23.8 |
| MQS-2230 | 10 | 20 | 21.3 |
| MQS-2245 | 15.2 | 30.5 | 21.4 |
| MQS-2430 | 12 | 25 | 21.3 |
| MQS-2436 | 14 | 29 | 21.4 |
| MQS-2445 | 17.8 | 37 | 21.4 |
| MQS-2470 | 28 | 58 | 21.5 |
| MQS-2736 | 18 | 38 | 20.7 |
| MQS-2740 | 20.6 | 43 | 20.7 |
| MQS-2745 | 23.2 | 48 | 20.7 |
| MQS-2750 | 25.8 | 54 | 20.6 |
| MQS-2760 | 31 | 65 | 20.6 |
| MQS-3040 | 25.7 | 54 | 19 |
| MQS-3064 | 40.2 | 84 | 19 |
| MQS-3230 | 21.8 | 46 | 18.2 |
| MQS-3236 | 26.2 | 56 | 18.2 |
| MQS-3245 | 32 | 65 | 18.2 |
| MQS-3254 | 38 | 80 | 18.2 |
| MQS-3640 | 36 | 75 | 18 |
| MQS-3645 | 40.8 | 88 | 18 |
| MQS-3650 | 46 | 96 | 18 |
| MQS-3660 | 54 | 117 | 18 |
| MQS-4050 | 58 | 121 | 16.9 |
| MQS-4060 | 70 | 146 | 16.9 |
| MQS-4560 | 87 | 182 | 15.6 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cylinder | Effective Volume (m³) |
Max.Ball Loading (t) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | |||||
| MQG-1557 | 1500 | 5700 | 8.5 | 12 | 28 | 130 |
| MQG-1564 | 1500 | 6400 | 9.6 | 13 | 28 | 155 |
| MQG-1864 | 1830 | 6400 | 15 | 20 | 23.8 | 210 |
| MQG-1870 | 1830 | 7000 | 16 | 22 | 23.8 | 245 |
| MQG-1880 | 1830 | 8000 | 18.8 | 26 | 23.8 | 280 |
| MQG-2170 | 2100 | 7000 | 22 | 30 | 24.1 | 320 |
| MQG-2175 | 2100 | 7500 | 23.5 | 33 | 24.1 | 355 |
| MQG-2265 | 2200 | 6500 | 22 | 35 | 21.7 | 380 |
| MQG-2270 | 2200 | 7000 | 23.8 | 38 | 21.7 | 380 |
| MQG-2275 | 2200 | 7500 | 25.5 | 42 | 21.7 | 450 |
| MQG-2470 | 2400 | 7000 | 28 | 52 | 21.7 | 570 |
| MQG-2480 | 2400 | 8000 | 32 | 60 | 21.5 | 630 |
| MQG-2750 | 2700 | 5000 | 25.8 | 54 | 20.7 | 630 |
| MQG-2760 | 2700 | 6000 | 31 | 65 | 20.6 | 710 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Max.Ball Loading (t) |
Speed (r/min) |
| MQG-1557 | 8.5 | 12 | 28 |
| MQG-1564 | 9.6 | 13 | 28 |
| MQG-1864 | 15 | 20 | 23.8 |
| MQG-1870 | 16 | 22 | 23.8 |
| MQG-1880 | 18.8 | 26 | 23.8 |
| MQG-2170 | 22 | 30 | 24.1 |
| MQG-2175 | 23.5 | 33 | 24.1 |
| MQG-2265 | 22 | 35 | 21.7 |
| MQG-2270 | 23.8 | 38 | 21.7 |
| MQG-2275 | 25.5 | 42 | 21.7 |
| MQG-2470 | 28 | 52 | 21.7 |
| MQG-2480 | 32 | 60 | 21.5 |
| MQG-2750 | 25.8 | 54 | 20.7 |
| MQG-2760 | 31 | 65 | 20.6 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cylinder | Effective Volume (m³) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | ||||
| MZ-2410 | 2400 | 1000 | 4.5 | 22 | 55 |
| MZ-3212 | 3200 | 1200 | 9.2 | 18.2 | 160 |
| MZ-4014 | 4000 | 1400 | 16.6 | 17.6 | 245 |
| MZ-5518 | 5500 | 1800 | 34.6 | 15 | 800 |
| MZ-6433 | 6400 | 3300 | 107 | 12.8 | 2000 |
| MZ-6724 | 6700 | 2400 | 80.5 | 12.5 | 2000 |
| MZ-7525 | 7500 | 2500 | 107 | 11.4 | 2500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Speed (r/min) |
Main Motor (KW) |
| MZ-2410 | 4.5 | 22 | 55 |
| MZ-3212 | 9.2 | 18.2 | 160 |
| MZ-4014 | 16.6 | 17.6 | 245 |
| MZ-5518 | 34.6 | 15 | 800 |
| MZ-6433 | 107 | 12.8 | 2000 |
| MZ-6724 | 80.5 | 12.5 | 2000 |
| MZ-7525 | 107 | 11.4 | 2500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding capacity （t/time） |
Shell rotation speed （r/min） |
Reference motor （kw） |
Liner material |
| 600×700 | 0.05 | 50 | 2.2 | Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials） |
| 800×600 | 0.075 | 42 | 3 | |
| 900×1200 | 0.2 | 38.5 | 5.5 | |
| 1300×1500 | 0.5 | 33 | 7.5 | |
| 1500×1800 | 1.2 | 28.5 | 11 | |
| 1800×2000 | 1.5 | 24 | 15 | |
| 2600×2800 | 5 | 16.5 | 37 | |
| 3000×3800 | 10 | 14.5 | 57.2 | |
| 3200×4600 | 15 | 13.5 | 75 |
| Model | Feeding capacity （t/time） |
Shell rotation speed （r/min） |
| 600×700 | 0.05 | 50 |
| 800×600 | 0.075 | 42 |
| 900×1200 | 0.2 | 38.5 |
| 1300×1500 | 0.5 | 33 |
| 1500×1800 | 1.2 | 28.5 |
| 1800×2000 | 1.5 | 24 |
| 2600×2800 | 5 | 16.5 |
| 3000×3800 | 10 | 14.5 |
| 3200×4600 | 15 | 13.5 |
